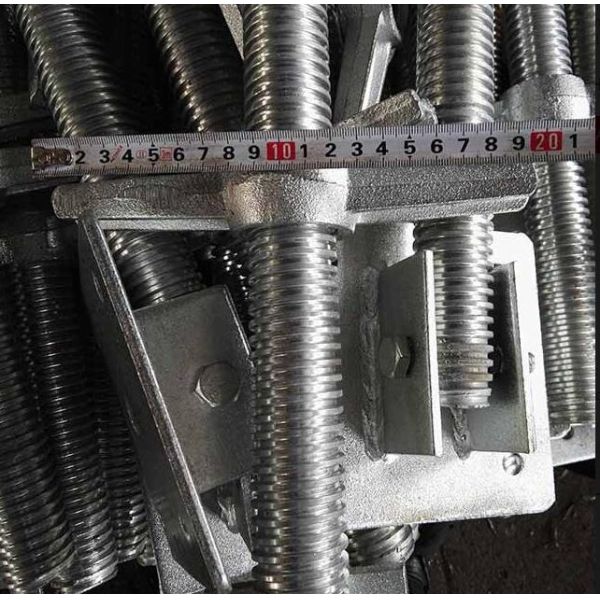

Galvanized Scaffolding Swivel Screw Base Jack Nut For Scaffolding Jack Base
◆Scaffolding Swivel Screw Base Jack Overview
The base jack levels the scaffold tower when the tower legs are placed on surfaces of different elevations. It ensures all the legs will have (appx) equal bearing on the substrate(s) the tower rests upon.
Unless the jack is placed on something solid, it will need dunnage underneath it to properly transfer the leg load into the soil.
It is also used to ‘fine tune’ the height of the tower itself, so that height adjustments of up to around 12″ can be achieved.
Essentially, a base jack is a load bearing base and is used to hold standards/uprights (the vertical tubes) in place and help transfer the weight of the structure to the ground. The base jack is used to help spread the load and has a shank in the center to hold the tube in place. To eliminate sway, a facade brace is fitted to the face of the scaffold every 30 meters. The spacing of the upright scaffolding and base jacks is usually around every 2.1m but this can be reduced to 2m or 1.8m depending on the weight of the structure.
◆Scaffolding Swivel Screw Base Jack Parameter
| Product name | Scaffolding Swivel Screw Base Jack |
| Main Material | Q235 or Q345 |
| Jack Tube Outer Diameter | 35/38mm or Customized |
| Jack Tube Thickness | 4mm or per design |
| Jack Length | 400-1000mm or Customized |
| Base Plate | 150x150x6mm |
| Surface treatment | Painted, galvanized, HDG, powder coated |
| Advantages | Competitive price, High-quality products, 24-hour after-sales service |
◆Scaffolding Swivel Screw Base Jack Advantage
A. High quality materials, higher quality.
Material--The Scaffolding Jack Base material is Q235 or Q345 carbon steel which is higher than the standard as the raw material.Quality assurance, not easy to crush deformation.
B. Advanced technology, better performance
Scaffolding Jack Base using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding.
C. Anti-rust treatment, longer service life.
After passivation and surface galvanized anti-rust treatment, scaffolding jack base is corrosion resistance is better than the ordinary tubes, longer service life.
D. Standard production, more secure.
According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.
For more details, just click here to download product catalog
Scaffolding Accessories.pdf
